Pressol 13044 Barrel pump- G 2'' M64x4 SRL 355-955-24 L/Min
Pressol 13044 Barrel pump- G 2'' M64x4 SRL 355-955-24 L/Min
Regular price
$329.96
Regular price
$0.00
Sale price
$329.96
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Pressol 13044 Barrel pump-G 2''-ABS+PA 6 SRL 355-955-24 l/min
Technical data
| Delivery rate (l/stroke) | 0.4 |
| Delivery rate at 60 strokes/min ( l/min ) | 24 |
| Pumping media | Oils up to SAE 50, diesel, petroleum, kerosene, glycerin and antifreeze undiluted |
| usage | containers 60/200/220 l |
| Length, three-part suction pipe ( mm ) | 355 - 955 |
| Barrel screw coupling | G 2'' male and M 64x4 male |
| Materials of parts in contact with liquid | |
| Pump body | ABS + PA6 |
| Seals | FKM |
| Metal pieces | steel galvanized |
| stainless steel | |
| steel, powder coated | |
| Inner diameter ( mm ) | 1.24 |
Specification
- Pump housing with piston, hand lever and discharge spout
-
Telescopic suction tube (
13 094 ), adjustable in length (from 355 to 955 mm ) -
Barrel screw coupling G 2'' (
13 085 ) and barrel screw coupling M 64x4 (13 085 003 ) -
Discharge hose, 1500 mm , with steel discharge spout (
13 044 010 ) -
Trouser holder (
00 845 ) -
Discharge spout (
81 112 ) - Valuable sales package
- Instructions Here
Special notes
- The constant delivery rate for many years
- Completely dismountable - easy to clean
- Spare parts, seals and pistons available for 10 years
- Simple barrel installation by screw coupling
- Can be freely positioned in 30° increments
-

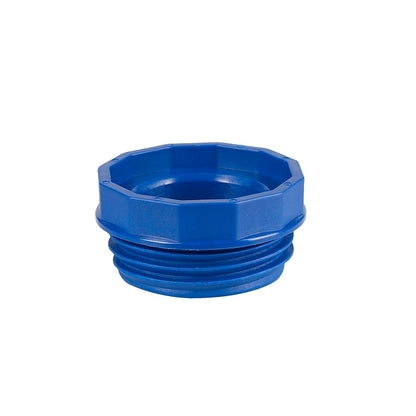

Optional barrel adapters: (
13 085 001 ) barrel adapter S 56x4; (13 085 002 ) barrel adapter S 69.5x5.5; (13 085 003 ) barrel adapter M 64x4 male; (13 085 006 ) barrel adapter S 64x5 - 3-year warranty (excluding wearable parts)
-
Suction strainer, (
13 097 003 ), optional for telescopic suction tube (13 094 ) - EAN 4103810130441
Packaging
| Dimensions LxWxH ( mm ) | 395x243x125 |
| Inner diameter ( mm ) | 2.3 |
| Packing unit | 1.0 |
