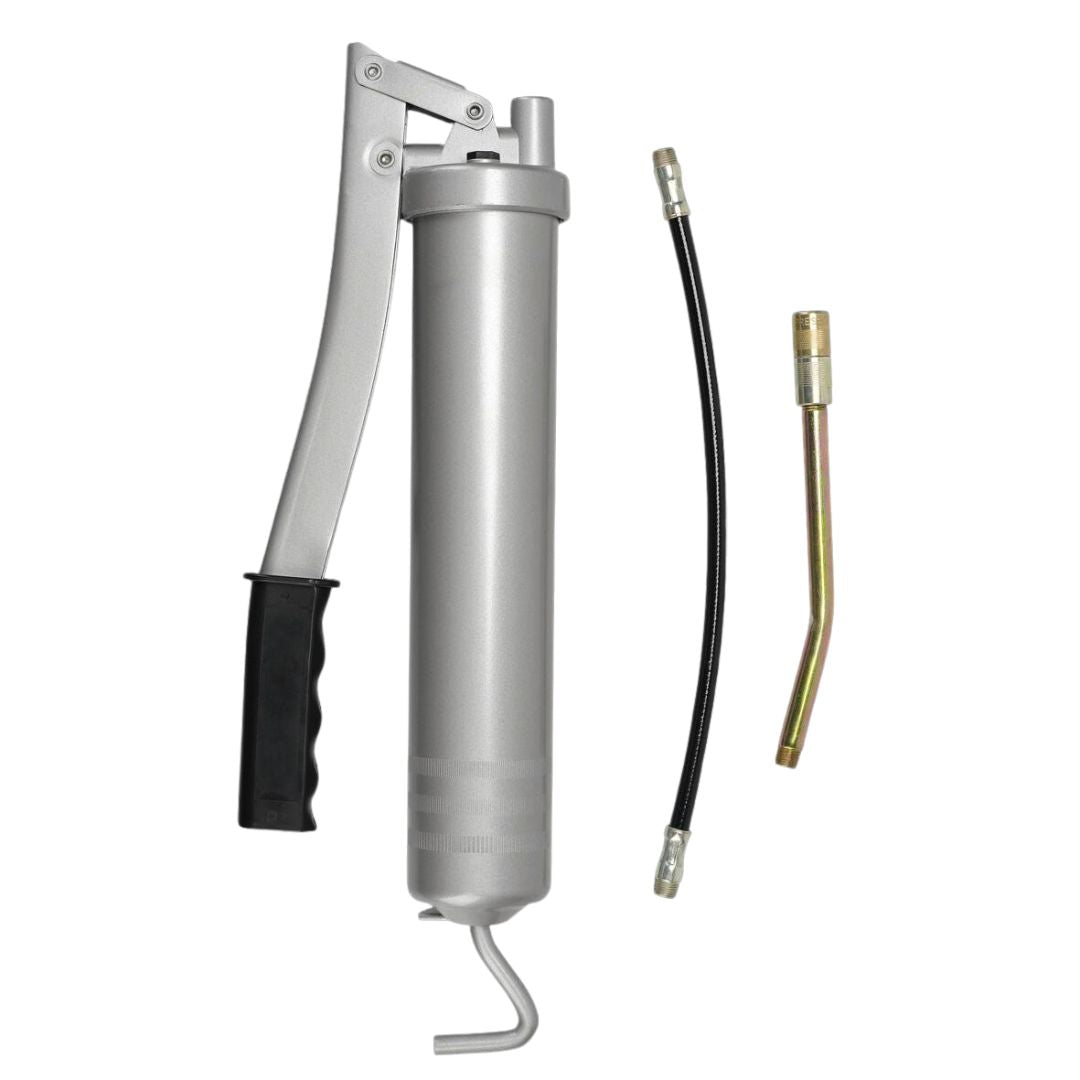

Pressol Standard grease gun-HHFP

Technical data

•  Grease gun connection, pressure-side: M 10 x 1
• Capacity (cm³): 500

• Refilling options: 400 g grease cartridge, DIN 1284, or bulk grease

• Diameter of grease piston (mm): 8

• Grease pump piston actuation HHFP: manually lever operated

• Delivery rate/stroke (cm³): 1,2, at a counter-pressure of 400 bar

• Discharge pressure up to (bar): 400

• Burst pressure system (bar): 850
• Burst pressure grease gun head (bar):1200
• Operation of push rod: with L-design handle
• Cover:loose
• Wall thickness of grease gun tube (mm): 1 Lacquering: silver
• Weight (kg): 1,28

 Specification

• Angled spout, M 10 x 1, 150 mm (12 635)
• Coupler, 4 jaws, M 10 x 1 (12 631)
• Sales package, with Bar code

• Operates with greases up to NLGI grade 2 at 20°C
• Plunger with exactly fitting when using bulk grease or cartridge
• acc. to DIN 1283
• TÜV - certified
• Pump piston with high accuracy of fit to the cylinder (no dummy apparent lubrication)
• Performance unchanged after 40.000 actuating cycles
• Grease gun head, zinc die casting Z 410
• Sure-grip handling due to deep band knurls
• Safe handle on the push rod
• Slip-resistant handle on grease gun lever
• Plunger rod clamp on end cap enables manual pressure to be applied to spring to compress bulk grease, or to force in the plunger in damaged cartridges.
• Low effort is required for lubrication due to optimum lever efficiency
• High-speed ventilation, by half a rotation of the grease gun tube

Packaging

Dimensions LxWxH (mm):400 x 140 x 75

Weight including package (kg): 1.38

Include

SKU: 12 634   Pressol Standard grease gun-HHFP M 10 x 1-GBDR-MU-VVP

NOT INCLUDED SKU12 756 High-pressure hose- G 1/8'' male 8 x 300 mm
