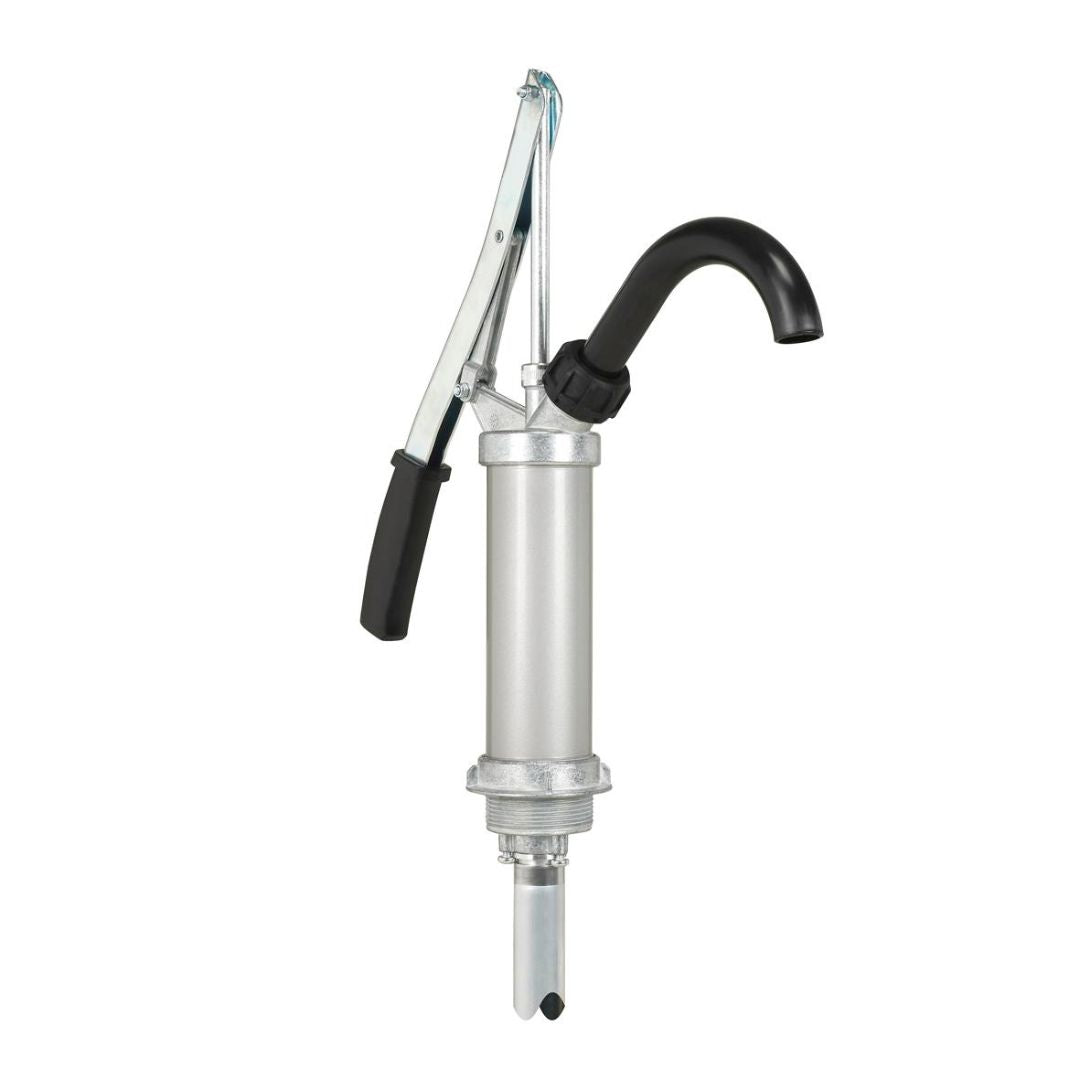

Pressol 13012 Steelpipe-barrel pump, SRL 480-900-16 l/min-STAK

Pressol 13012 Steelpipe-barrel pump, SRL 480-900-16 l/min-STAK

$109.51
$0.00 $109.51
Sale Sold out
Tax included. Shipping calculated at checkout.

Pressol 13012 Steelpipe-barrel pump, SRL 480-900-16 l/min-STAK

Technical specifications

Flow rate (l/stroke) 0.3
Flow rate at 60 strokes/min ( l/min ) 18
conveying media Oils up to SAE 90
Mission Container for 60/200/220 l
outlet Outlet elbow, fastened with Union nut
Length suction tube ( mm ) 355
Immersion depth (2 parts) ( mm ) 355-625
Immersion depth (3 parts) ( mm ) 685 - 955
barrel screw connection G 2'' a

Materials of the parts that come into contact with the medium
pump head impact-resistant die-cast zinc
pump body aluminium
intake manifold HDPE (High Density Polyethylene)
outlet elbow pp
seals PVC , NBR , FKM

Inside diameter ( mm ) 1.59

Specifications

  • Telescopic suction tube adjustable in length (from 355 to 955 mm )
  • Ergonomic handle, non-slip, very good power transmission and handling
  • Packed in a single carton
  • With EAN code

Special features

  • Can be used for engine oil from SAE 5W to SAE50, gear oil from SAE 75W to SAE90, heating oil, diesel, machine oil, cutting oil, petroleum, undiluted antifreeze
  • Easy cleaning is possible due to the easy dismantling
  • A non-return valve can be easily installed in the intake manifold without tools
  • Due to the check valve, the medium does not run back into the container

Packaging

Dimensions LxWxH ( mm ) 800mmx90mmx90mm
Weight including packaging ( kg ) 1.77
Packaging Unit 1.0
